LIGHT OPERATING MODES
PERMANENT ILLUMINATION MODE
This light is designed for both the permanent and light-triggering mode.
For permanent illumination bring the voltage of 10-24 V to the pin number 1 (brownwire).
The light is ON during the time when the 24 V EN signal is activated.
Use a PCL, camera or another binary signal source.
For the light intensity control, please see the text bellow.
LIGHT TRIGGERING MODE
Light triggering mode saves energy and extends the lifetime of the light.
Trigger operation mode is recommended when a parallel operation of 2 or more lights might affect
the quality of the acquired image.
To start using a triggering mode, bring the pin number 1 (brown wire) to a 10-24 V signal.
The light is ON when a voltage signal is present at pin number 1 then.
Use a PCL, camera, or another binary signal source for triggering.
For the light intensity control, please see the text bellow.
LIGHT SOURCE INTENZITY REGULATION
The light intensity might be regulated by PWM signal at a pin n. 1 (brown wire) or an external controller.
The maximum PWM frequency is ≤ 40 kHz.
Configuration
| Model series | Wavelength | Datasheet | 2D drawing | 3D model |
|---|---|---|---|---|
|

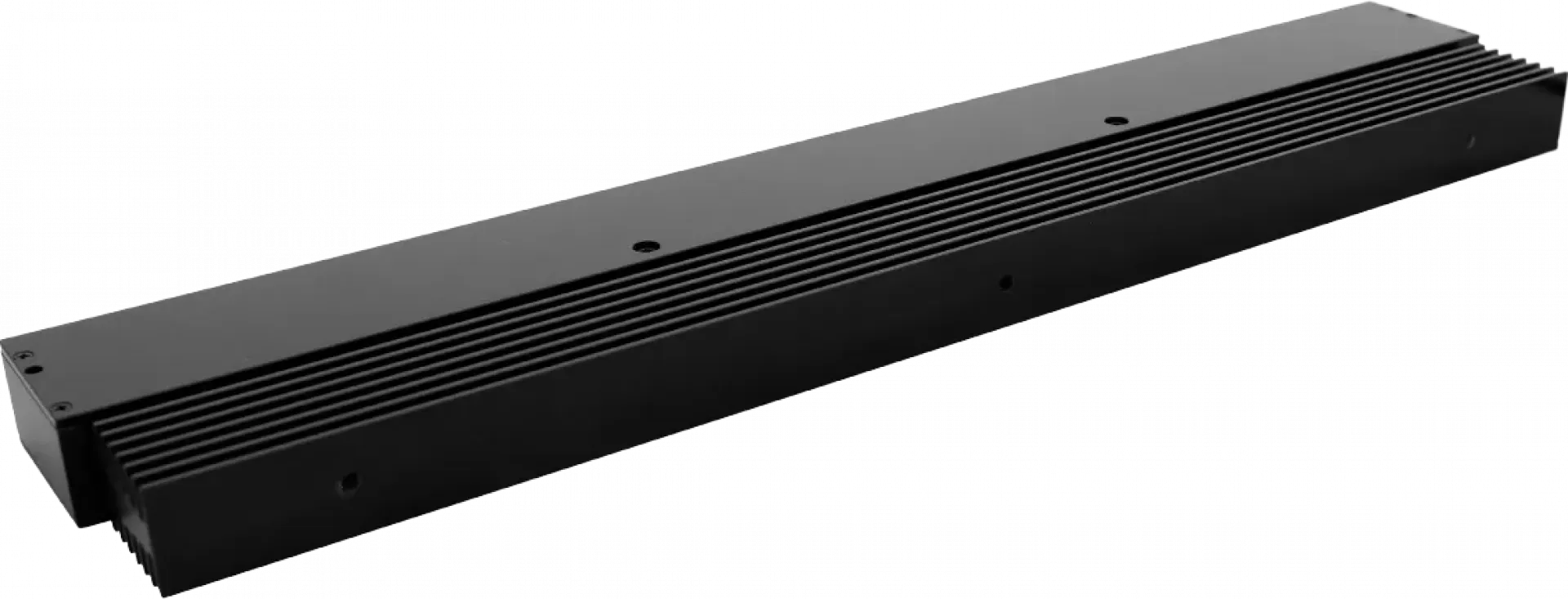

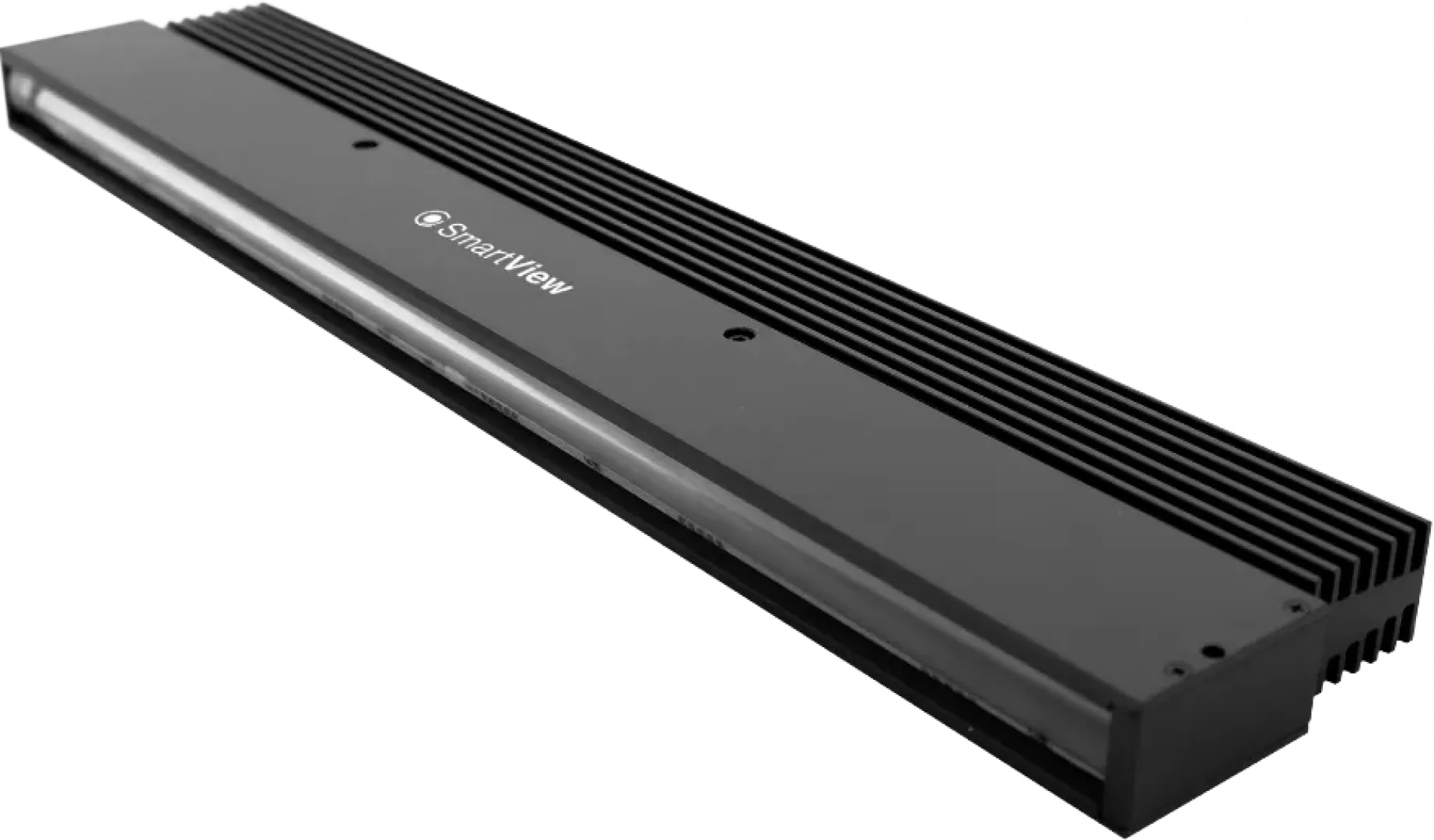

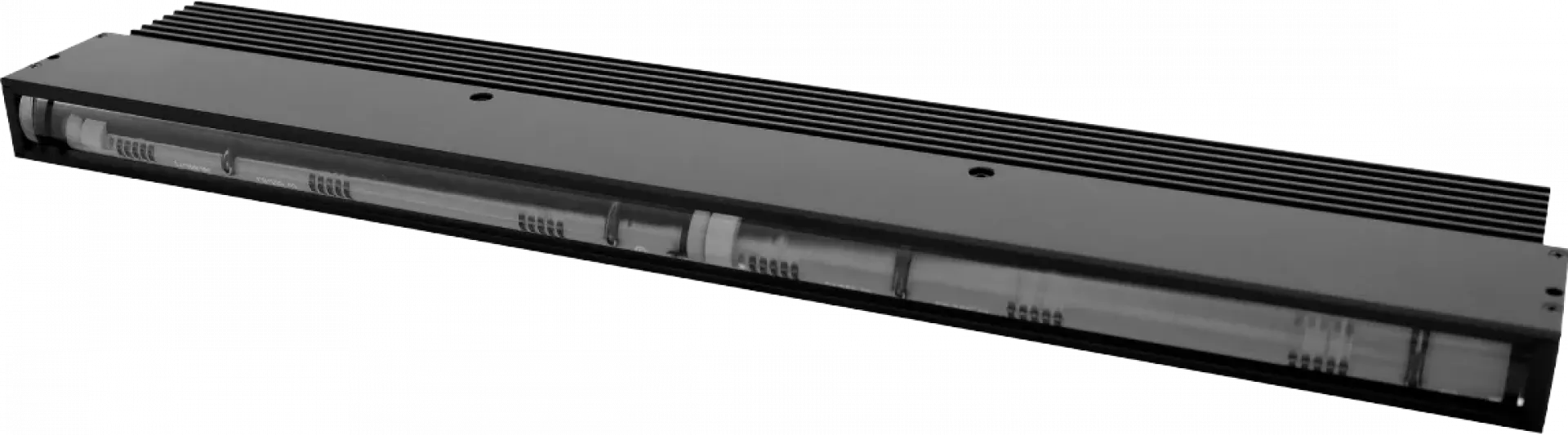

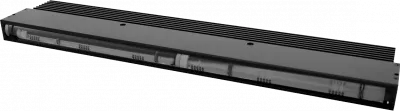

LS-400W
(More variants)
|
5000 |
Principles of use
Dimensions and weights
| Model series | A - Length (mm) | B - Width (mm) | C - Height (mm) | Weight (g) |
|---|---|---|---|---|
| LS-400W | 410 | 25 | 81-93 | 1628 |
