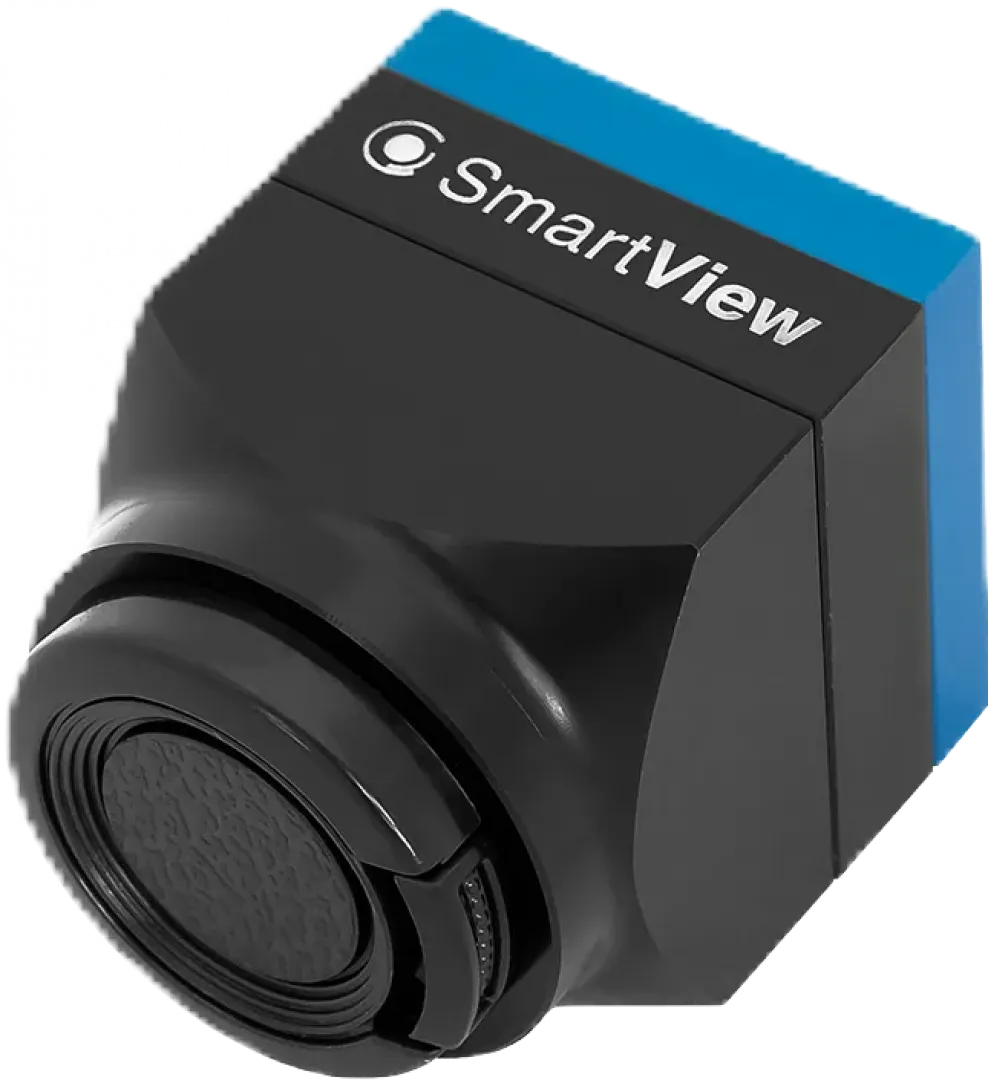

SP-26UVS-CM-405

Spot Light 26mm ultraviolet 405nm IP50 M8/3-pin short housing

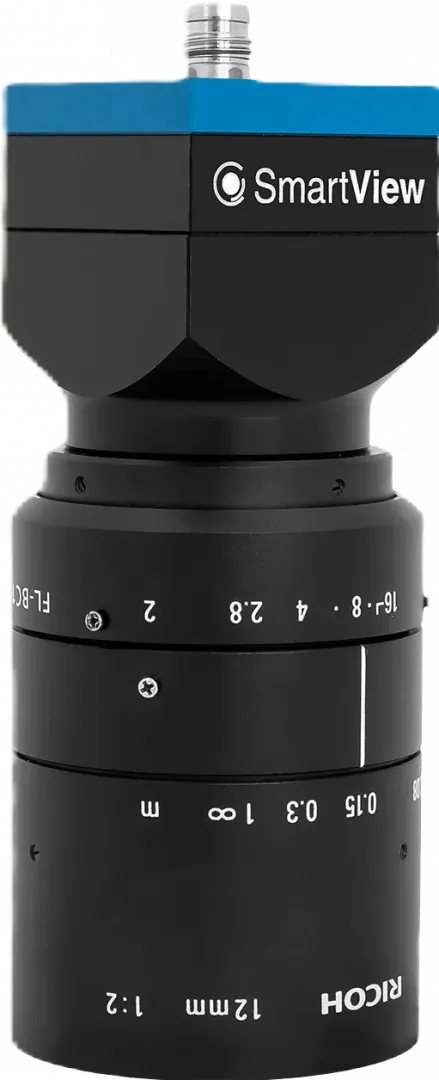

Precise spot illumination as a combination of a robust, strong Spot Light and a C-mount lens.

  • Compact Design
  • C-mount lens of your choice
  • Homogenous illumination without undesirable halo effects
Spot Light 26mm ultraviolet 405nm IP50 M8/3-pin short housing
Active Illumination Area (mm) 26
IP Category IP50
Weight (g) 136

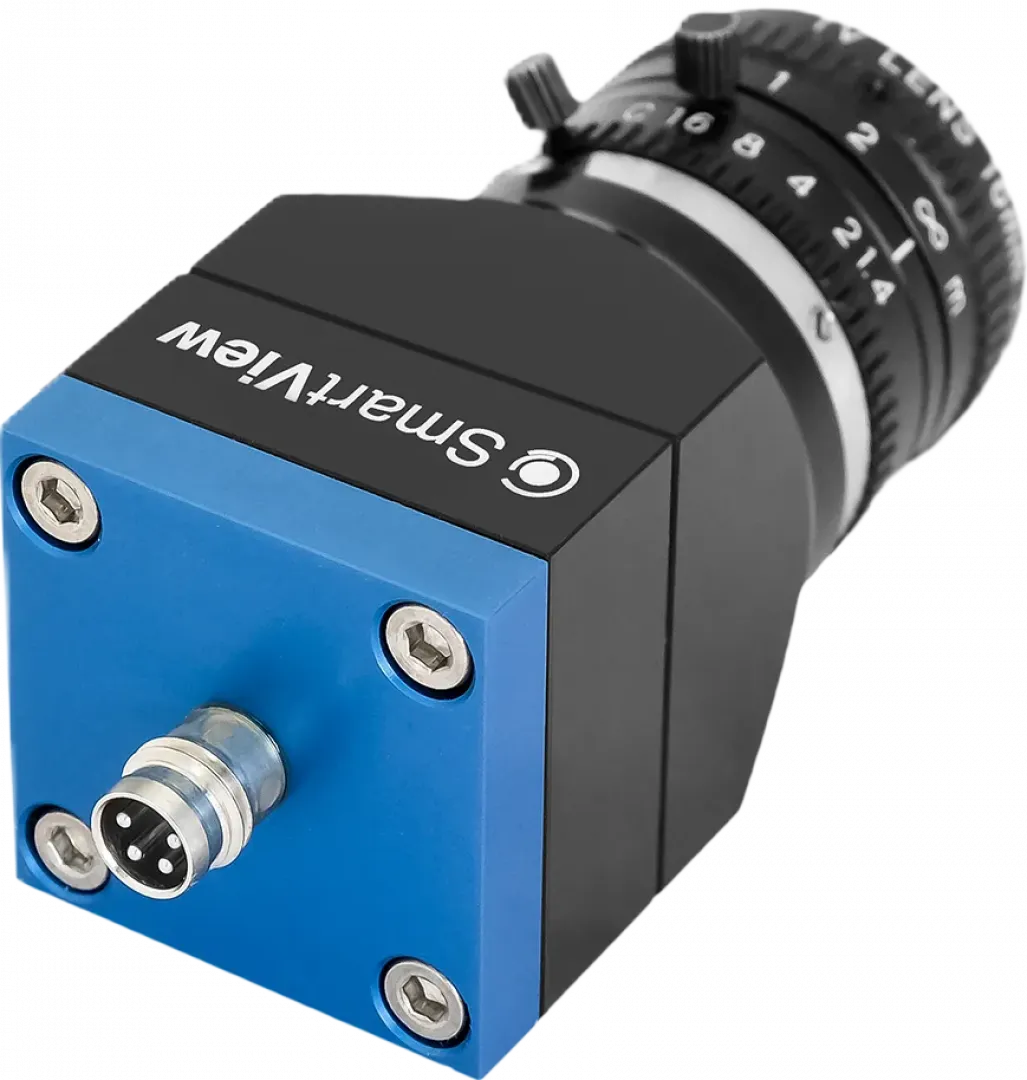

Connector M8/4pin Connector M8/3pin
Red Green Blue Ultraviolet Infrared White
LED Wavelength 625 nm LED Wavelength 525 nm LED Wavelength 470 nm LED Wavelength 365 nm LED Wavelength 850 nm LED Wavelength 5700K LED Wavelength 660 nm LED Wavelength 940 nm LED Wavelength 385 nm LED Wavelength 405 nm LED Wavelength 395 nm
Strobe, Trimmer, Trigger mode Short housing, Trigger mode
Dimensions L32xW32xH72 mm Dimensions L32xW32xH37,4 mm
Cancel all parameters

LIGHT OPERATING MODES

PERMANENT ILLUMINATION MODE
This light is designed for both the permanent and light-triggering mode.
For permanent illumination bring the voltage of 10-24 V to the pin number 4 (black wire).
The light is ON during the time when the 24 V EN signal is activated.
Use a PCL, camera or another binary signal source.
For the light intensity control, please see the text bellow.

LIGHT TRIGGERING MODE
Light triggering mode saves energy and extends the lifetime of the light.
Trigger operation mode is recommended when a parallel operation of 2 or more lights might affect
the quality of the acquired image.
To start using a triggering mode, bring the pin number 4 (black wire) to a 10-24 V signal.
The light is ON when a voltage signal is present at pin number 4 then.
Use a PCL, camera, or another binary signal source for triggering.
For the light intensity control, please see the text bellow.

LIGHT SOURCE INTENZITY REGULATION
The light intensity might be regulated by an analogue voltage,
PWM signal or an external controller.
In case of using an analogue signal, the light intensity might be regulated in a linear way at a pin number 4
by the voltage span of 2.7 -10 V.
Bringing a voltage of 10-24 V to the pin number 4, the light works at its maximum intensity.
The maximum PWM frequency is ≤ 40 kHz.

Configuration

Model series Wavelength Datasheet 2D drawing 3D model
SP-26UVS-CM-405
405

Principles of use

Dimensions and weights

illustration
Model series A - Length (mm) B - Width (mm) C - Height (mm) Weight (g)
SP-26UVS-CM-405 32 32 72 136
