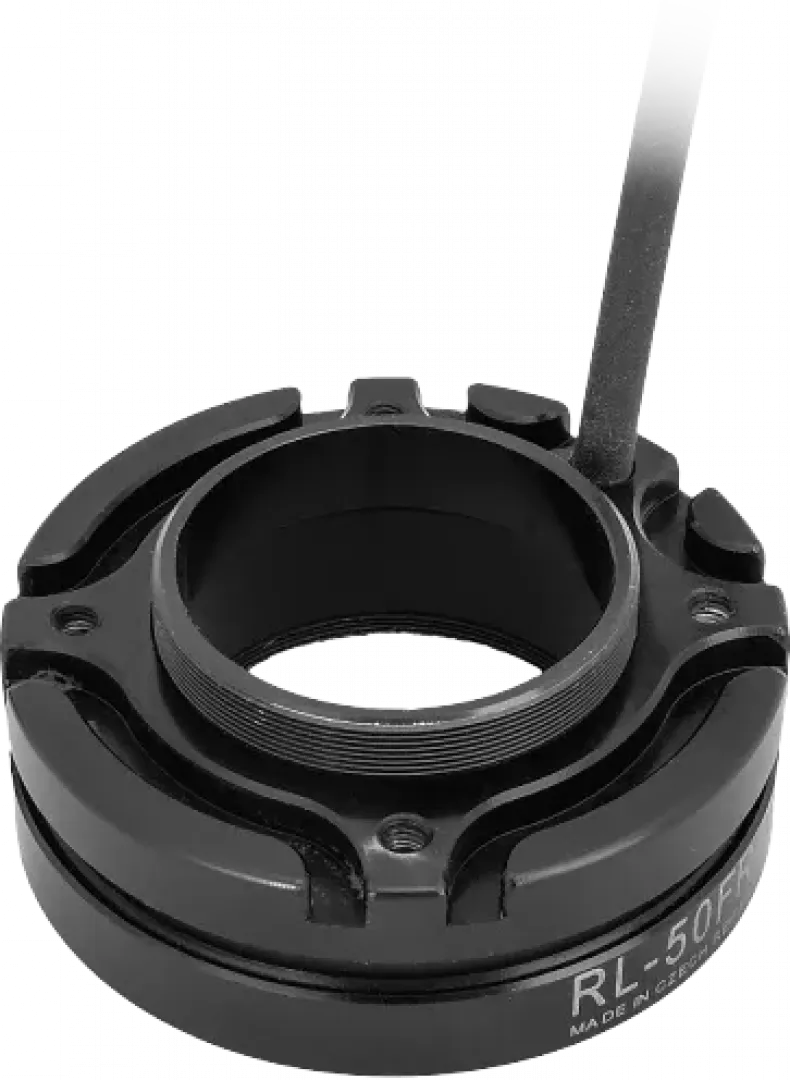

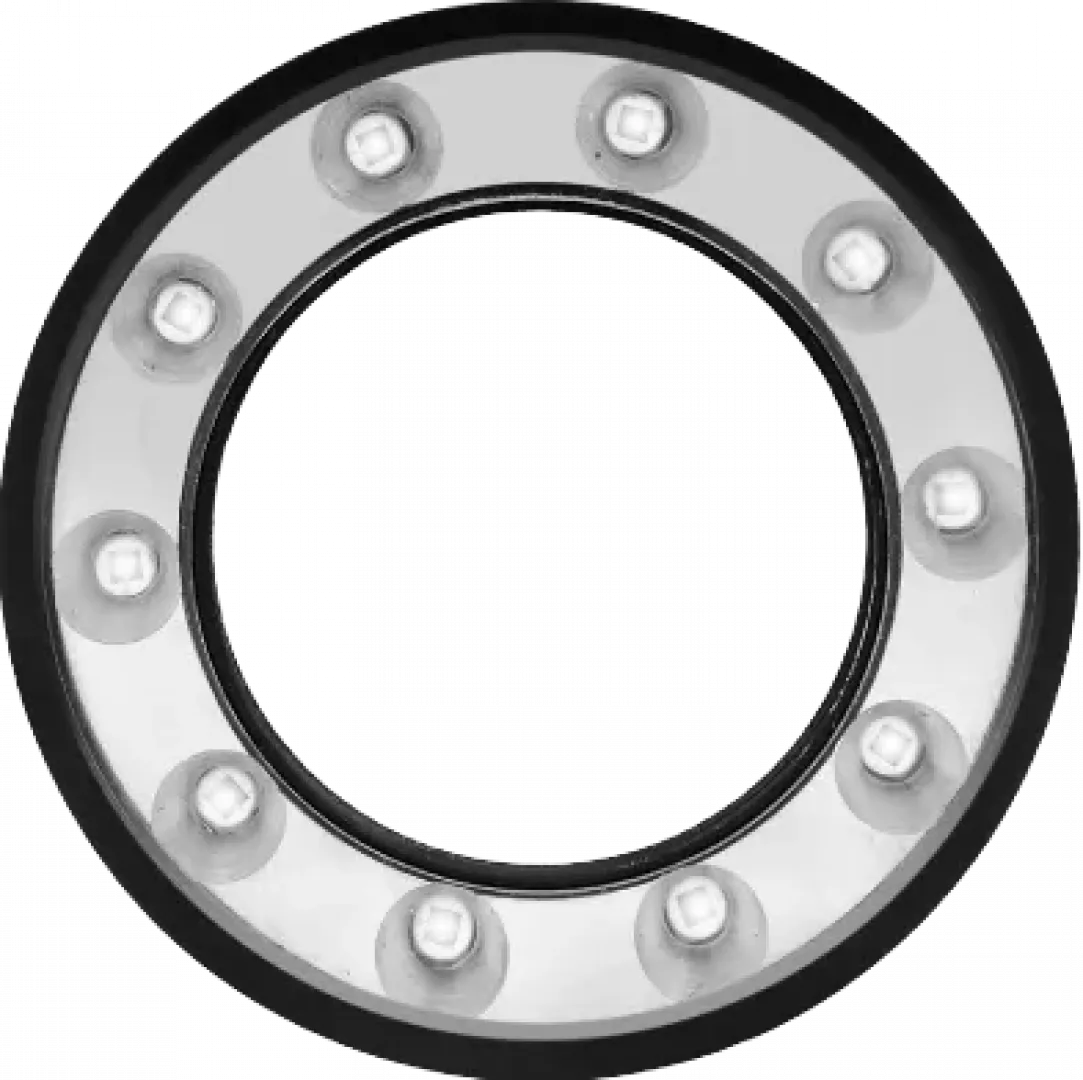

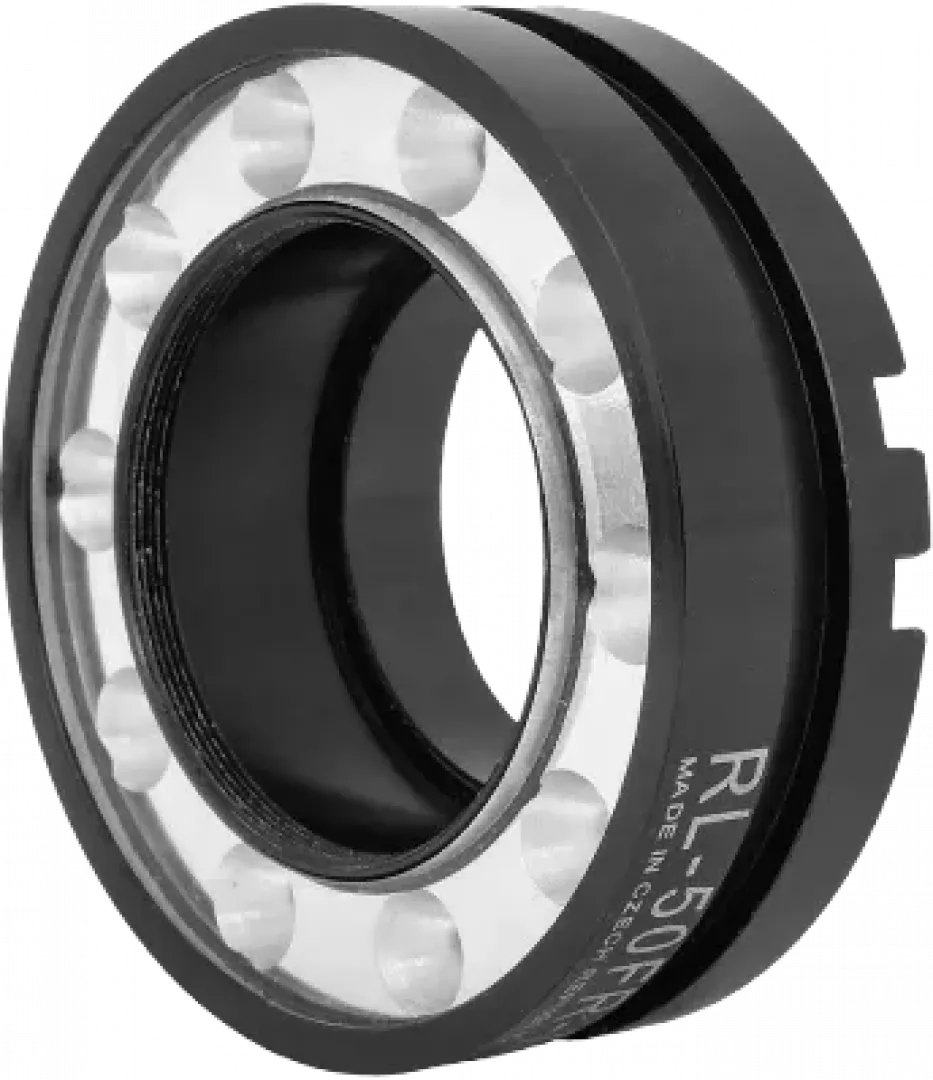

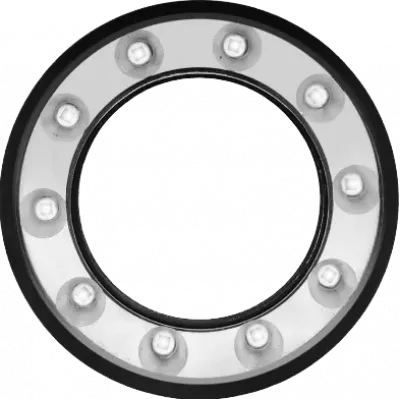

LIGHT OPERATING MODES
PERMANENT ILLUMINATION MODE
This light is designed for both the permanent and light-triggering mode.
For permanent illumination bring the voltage of 10-24 V to the pin number 4 (black wire).
The light is ON during the time when the 24 V EN signal is activated.
Use a PCL, camera or another binary signal source.
For the light intensity control, please see the text bellow.
LIGHT TRIGGERING MODE
Light triggering mode saves energy and extends the lifetime of the light.
Trigger operation mode is recommended when a parallel operation of 2 or more lights might affect
the quality of the acquired image.
To start using a triggering mode, bring the pin number 4 (black wire) to a 10-24 V signal.
The light is ON when a voltage signal is present at pin number 4 then.
Use a PCL, camera, or another binary signal source for triggering.
For the light intensity control, please see the text bellow.
STROBE MODE
Strobe function significantly multiplies the maximum intensity of the light.
The strobing function saves energy, extends the light lifetime and in many cases improves the stability of the entire inspections system.
Pin number 2 (white wire) of the M8 connector is used to activate the strobe function.
The maximum strobe pulse time is 470 ms,
while the light idle time must be at least 3 times longer.
Please do not use a trigger mode during strobing function, do not bring a voltage to the pin number 4.
LIGHT SOURCE INTENZITY REGULATION
The light intensity might be regulated by an internal trimmer or an external controller.
Configuration
| Model series | Wavelength | Datasheet | 2D drawing | 3D model |
|---|---|---|---|---|
|
RL-50UV405-M30,5
(More variants)
|
405 |
Dimensions and weights
| Model series | A - Outer Ø (mm) | B - Inner Ø (mm) | C - Height (mm) | Weight (g) |
|---|---|---|---|---|
| RL-50UV405-M30,5 | 50 | 26 | 18,6 | 79 |
