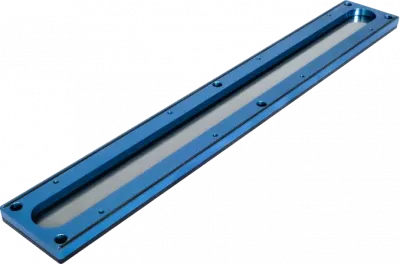

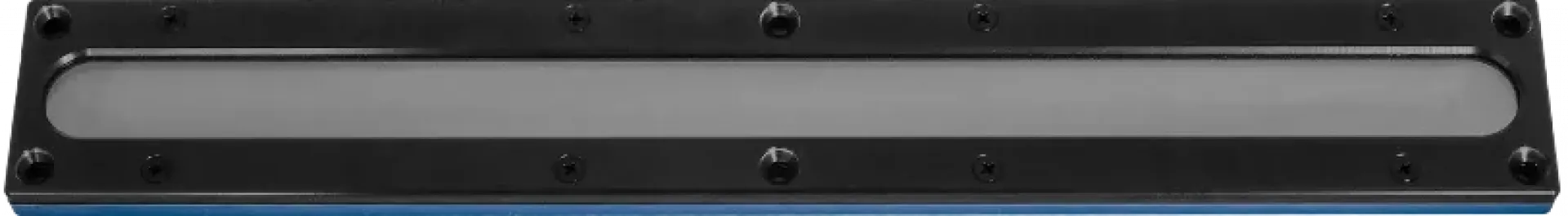

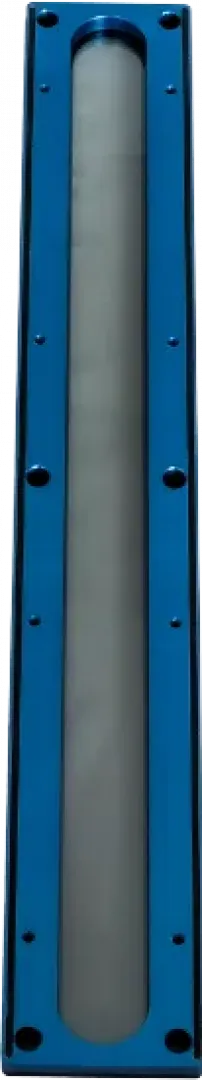

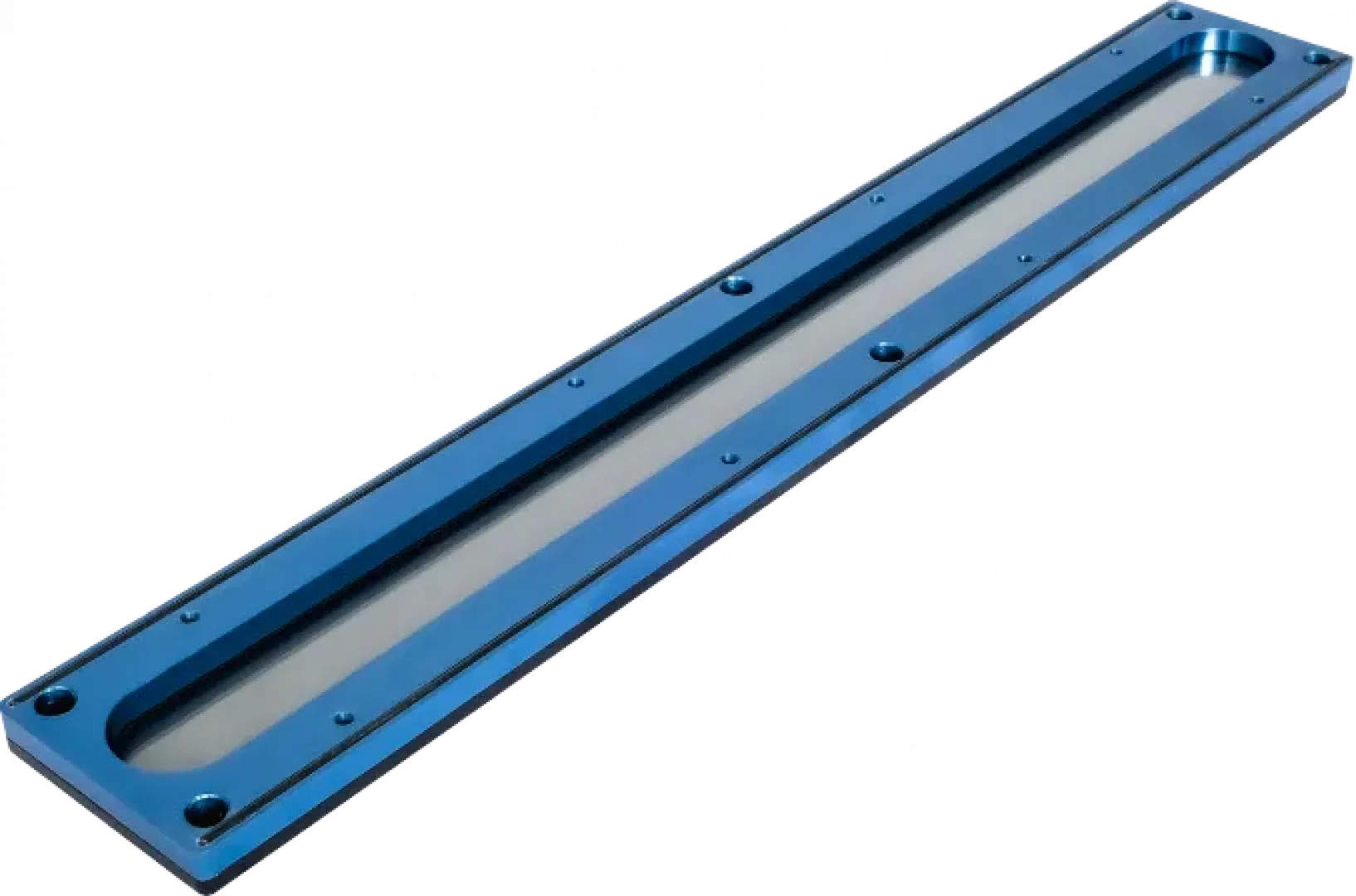

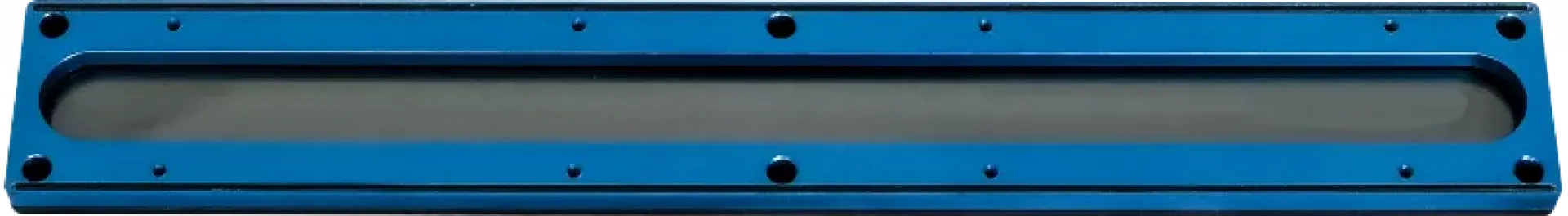

Light polarizing cover for LL-600

LIGHT OPERATING MODES

PERMANENT ILLUMINATION MODE
This light is designed for both the permanent and light-triggering mode.
For permanent illumination bring the voltage of 12-28 V to the pin number 4 (black wire).
The light is ON during the time when the 24 V EN signal is activated.
Use a PCL, camera or another binary signal source.
For the light intensity control, please see the text bellow.

LIGHT TRIGGERING MODE
Light triggering mode saves energy and extends the lifetime of the light.
Trigger operation mode is recommended when a parallel operation of 2 or more lights might affect
the quality of the acquired image.
To start using a triggering mode, bring the pin number 4 (black wire) to a 12-28 V signal.
The light is ON when a voltage signal is present at pin number 4 then.
Use a PCL, camera, or another binary signal source for triggering.
For the light intensity control, please see the text bellow.

LIGHT SOURCE INTENZITY REGULATION
The light intensity might be regulated by an internal trimmer, analogue voltage,
PWM signal or an external controller.
In case of using an analogue signal, the light intensity might be regulated in a linear way at a pin number 2
by the voltage span of 2.7 -10 V.
Bringing a voltage of 12-28 V to the pin number 2, the light works at its maximum intensity.
The maximum PWM frequency is ≤ 40 kHz.
