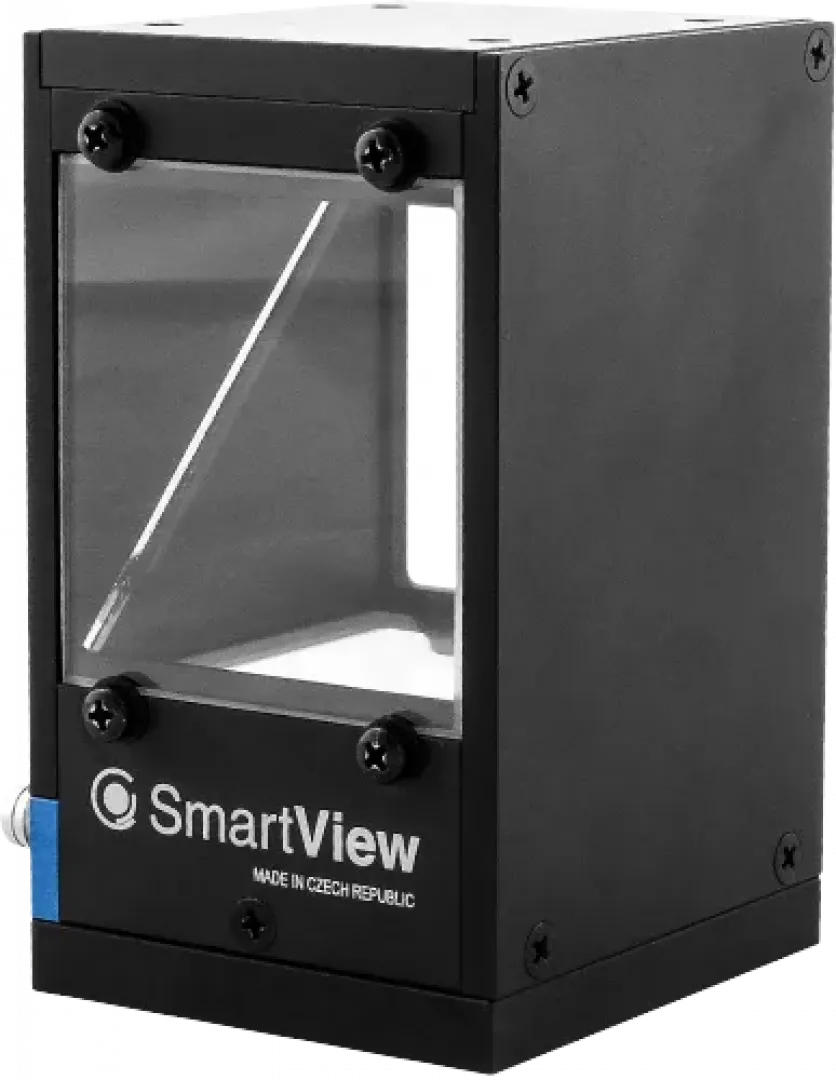

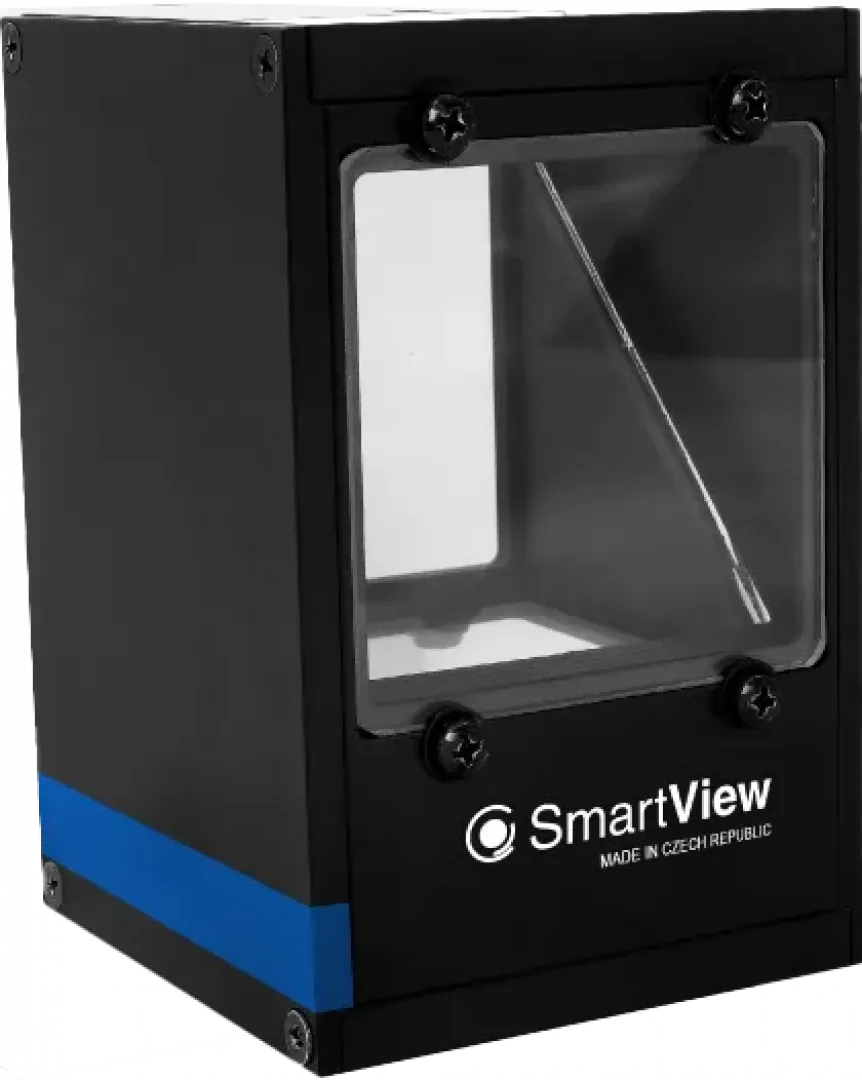

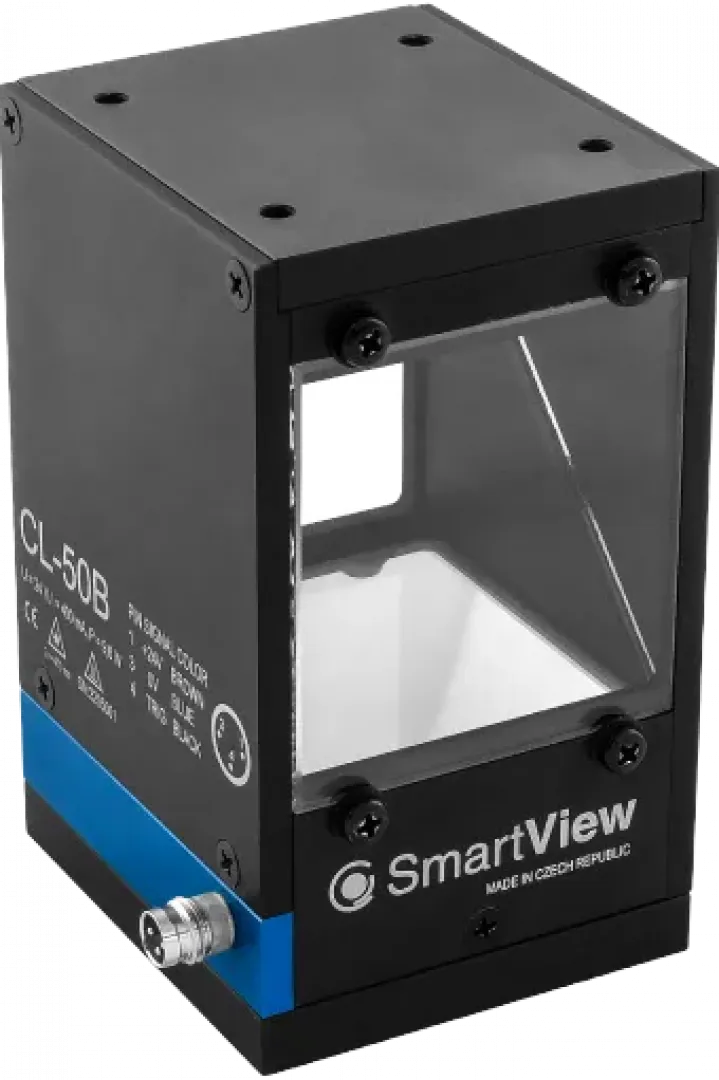

LIGHT OPERATING MODES
PERMANENT ILLUMINATION MODE
This light is designed for both the permanent and light-triggering mode.
For permanent illumination bring the voltage of 12-24 V to the pin number 4 (black wire).
The light is ON during the time when the 24 V EN signal is activated.
Use a PCL, camera or another binary signal source.
For the light intensity control, please see the text bellow.
LIGHT TRIGGERING MODE
Light triggering mode saves energy and extends the lifetime of the light.
Trigger operation mode is recommended when a parallel operation of 2 or more lights might affect
the quality of the acquired image.
To start using a triggering mode, bring the pin number 4 (black wire) to a 12-24 V signal.
The light is ON when a voltage signal is present at pin number 4 then.
Use a PCL, camera, or another binary signal source for triggering.
For the light intensity control, please see the text bellow.
LIGHT SOURCE INTENZITY REGULATION
The light intensity might be regulated by an integrated trimmer.
Please, loose the protective screw, using a screwdriver with a 2.5 mm tip size.
There is a maximum lighting intensity set-up as a default.
Configuration
| Model series | Wavelength | Datasheet | 2D drawing | 3D model |
|---|---|---|---|---|
|
CL-50R
(More variants)
|
625 |
Principles of use
Dimensions and weights
| Model series | A - Length (mm) | B - Width (mm) | C - Height (mm) |
|---|---|---|---|
| CL-50R | 58 | 64 | 100 |
