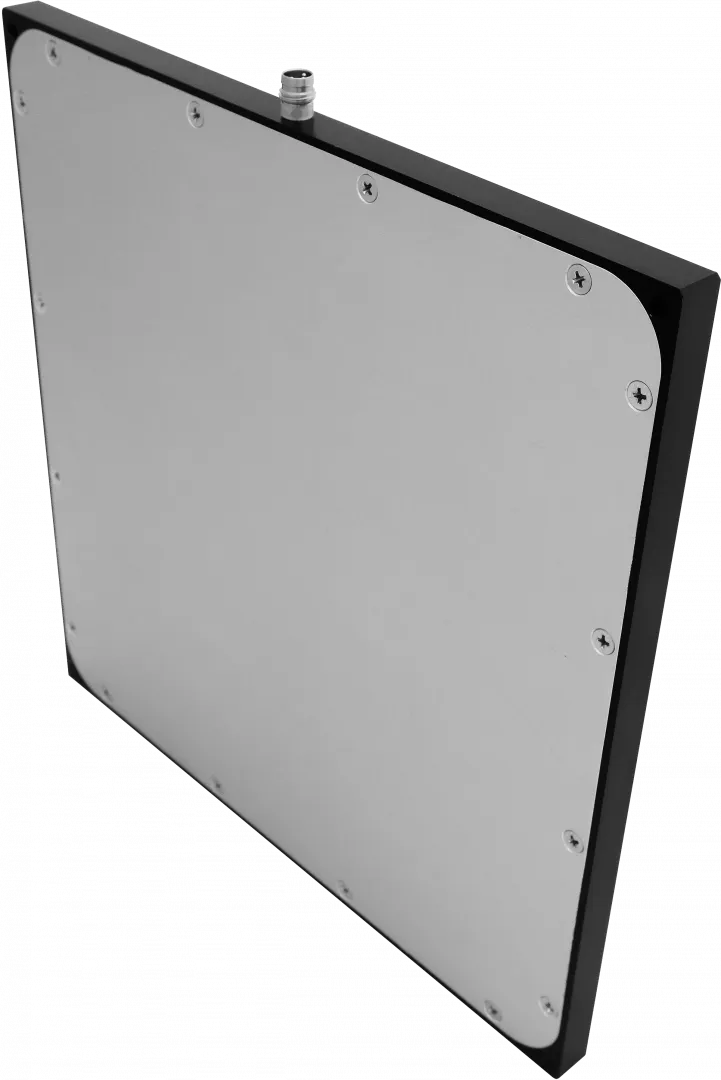

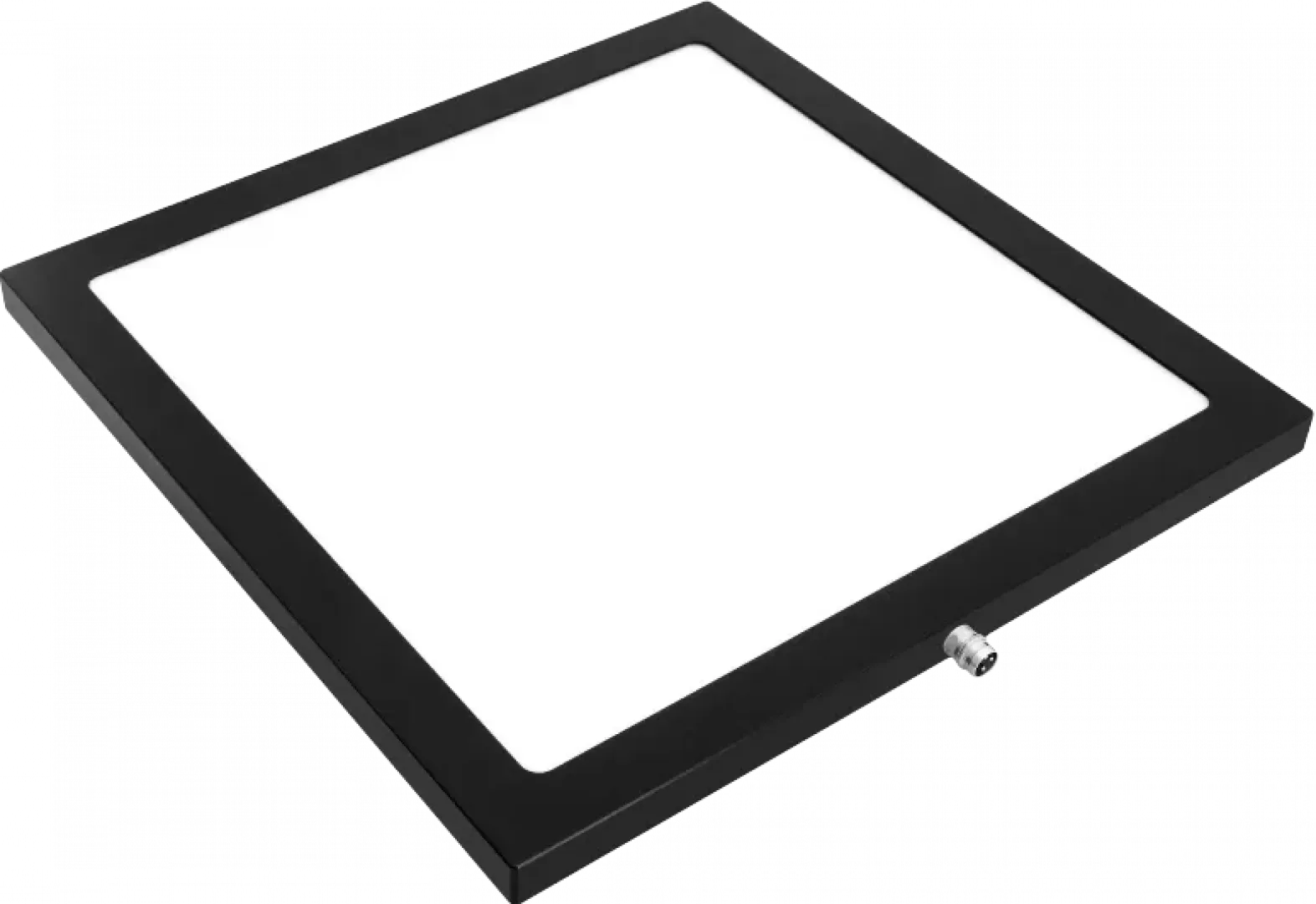

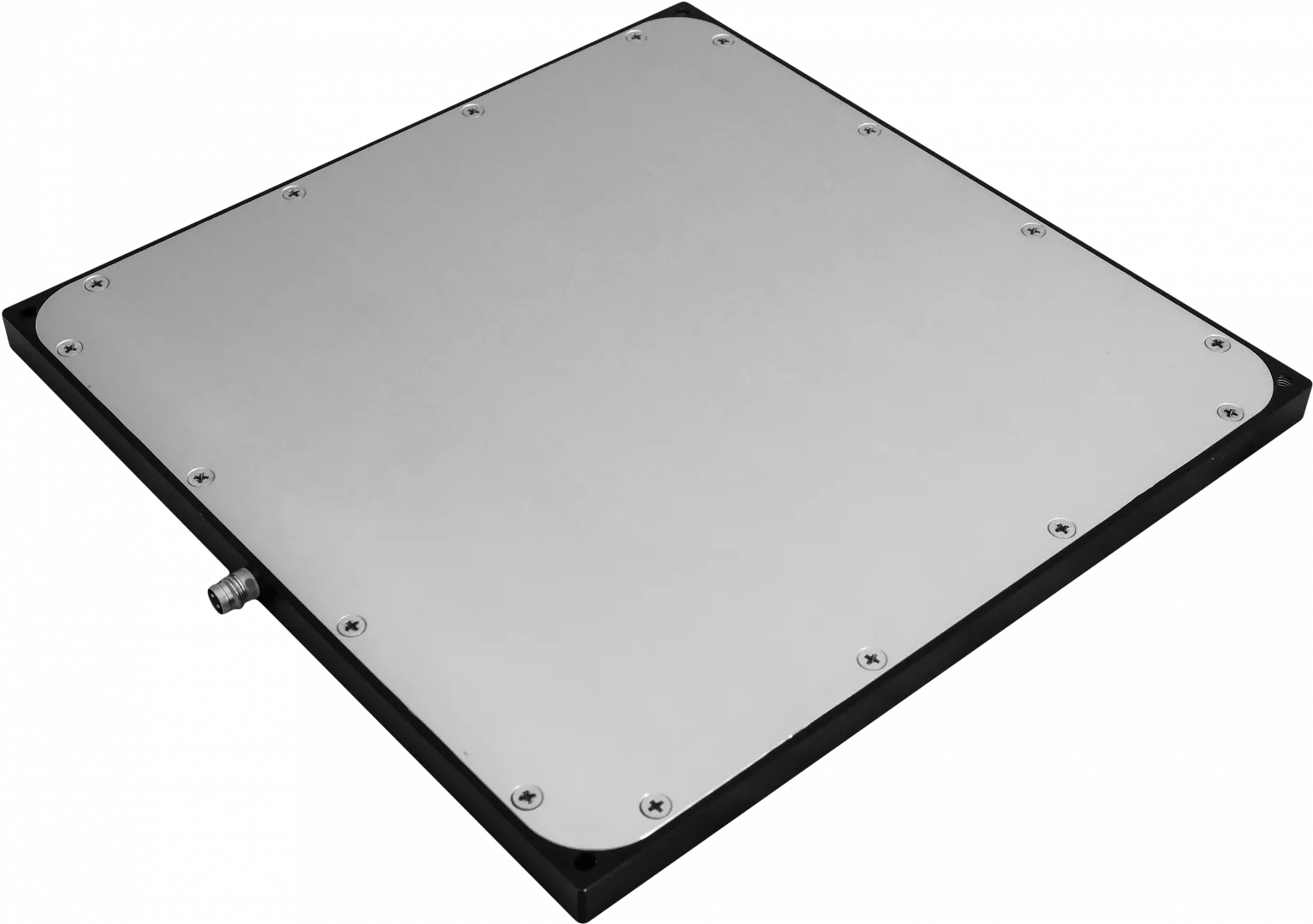

BL-85HIR-4S

Back Light 85x85mm infrared 940nm M8/4-pin strobe

Back light diffused illumination to emphasize the shape and contours of the controlled object.

  • Compact design
  • Homogenous light field
  • Universal mounting
  • Rough, metal housing

  • Lighting intensity can be regulated by CM-01Mini universal controller
  • Complete size range
  • Bottom illumination to highlight shapes and contours
  • Hole detection
  • Measuring applications
  • Direct illumination of glossy surfaces
  • Illumination of transparent materials
  • Crack inspection
  • Surface inspection
Back Light 85x85mm infrared 940nm M8/4-pin strobe
Active Illumination Area (mm) 85x85
IP Category IP63
Connector M8/4
Features Strobe, Trigger mode
Dimensions (mm) L110xW110xH11
Weight (g) 180
Infrared Red White
LED Wavelength 850 nm LED Wavelength 633 nm LED Wavelength 6500K LED Wavelength 940 nm
Cancel all parameters

LIGHT OPERATING MODES

PERMANENT ILLUMINATION MODE
This light is designed for both the permanent and light-triggering mode.
For permanent illumination bring the voltage of 12-28 V to the pin number 4 (black wire).
The light is ON during the time when the 24 V EN signal is activated.
Use a PCL, camera or another binary signal source.
For the light intensity control, please see the text bellow.

LIGHT TRIGGERING MODE
Light triggering mode saves energy and extends the lifetime of the light.
Trigger operation mode is recommended when a parallel operation of 2 or more lights might affect
the quality of the acquired image.
To start using a triggering mode, bring the pin number 4 (black wire) to a 12-28 V signal.
The light is ON when a voltage signal is present at pin number 4 then.
Use a PCL, camera, or another binary signal source for triggering.
For the light intensity control, please see the text bellow.

STROBE MODE
Strobe function significantly multiplies the maximum intensity of the light.
The strobing function saves energy, extends the light lifetime and in many cases improves the stability of the entire inspections system.
Pin number 2 (white wire) of the M8 connector is used to activate the strobe function.
The maximum strobe pulse time is 10 ms, while the light idle time must be at least 10 times longer, which in this case makes 100 ms.
Bringing a permanent logical 1 signal (12-28 V voltage) to a light strobe input, the light standardly operates in a 10 ms ON and 100 ms OFF cycle.
The strobe operation pulse might be chosen in the time span of 1-10 ms.
Please do not use a trigger mode during strobing function, do not bring a voltage to the pin number 3.

LIGHT SOURCE INTENZITY REGULATION
The light intensity might be regulated by PWM signal or an external controller.
In case of using an analogue signal, the light intensity might be regulated in a linear way at a pin number 4
by the voltage span of 2.7 -10 V.
Bringing a voltage of 12-28 V to the pin number 4, the light works at its maximum intensity.
The maximum PWM frequency is ≤ 40 kHz.

Configuration

Model series Wavelength Datasheet 2D drawing 3D model
BL-85HIR-4S (More variants)
940

Principles of use

Dimensions and weights

illustration
Model series A - Length (mm) B - Width (mm) C - Height (mm) Weight (g)
BL-85HIR-4S 110 110 11 180
